PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (20HR)				12V 12Ah
Dimension		Length Width Container Height Total Height		151±1mm (5.94 inches) 98±1mm (3.86 inches) 95±1mm (3.74 inches) 100±1mm (3.94 inches)
Weight				Approx. 3.35 Kg ±3% (7.39lbs)
Standard Terminal				Fasten Tab No.250E(F2)
						Shimastu NP series AGM VRLA Batteries have been developed as general purpose batteries,they're valve-regulated lead acid batteries with high quality. Absorbed Glass Mat(AGM) separators & high purity raw materials, featured by perfectly good performance and reliable standby service life. Features: 1.Non-spillable 2.Sealed and Maintenance-free Operation 3.High Quality and High Reliability 4.Less gassing,low Self-discharge 5.Low internal resistance 6.Long design life up to 6 years in float service at 25℃ (77 0F )
ELECTRICAL SPECIFICATION

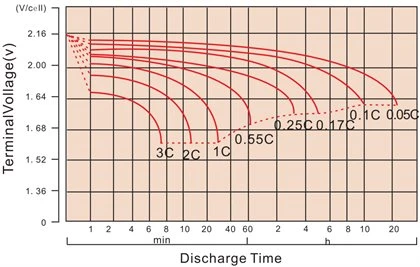

Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			20 hour rate (0.6A) 10 hour rate (1.122A) 5 hour rate (2.04A) 3 hour rate (3.0A) 1 hour rate (6.6A)		12Ah 11.2Ah 10.2Ah 9.0Ah 6.6Ah
Capacity affected by temperature			40℃ （104 ⁰F） 25℃ （77 ⁰F） 0℃ （32 ⁰F）		102% 100% 85%
Max Discharge Current			120A(5 Sec)
Short Circuit Current			560A
Internal Resistance			Full charged battery (25℃,77 0F) 25mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 3.6A Voltage 14.4~15.0V at 25℃ (77 ⁰F ) Temperature Coefficient –30mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 ⁰F ) Temperature Coefficient –20mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	44.24	31.59	23.06	13.25	7.344	3.381	2.261	1.182	0.624
1.65V	41.13	29.85	22.05	12.72	7.093	3.276	2.203	1.170	0.613
1.70V	37.12	27.49	20.65	12.15	6.852	3.189	2.146	1.150	0.606
1.75V	33.26	25.16	19.22	11.62	6.600	3.092	2.094	1.135	0.600
1.80V	29.20	22.76	17.76	11.11	6.348	3.000	2.040	1.122	0.595
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	73.340	53.700	40.310	24.050	13.800	6.457	4.357	2.324	1.228
1.65V	68.970	51.710	39.110	23.340	13.400	6.282	4.262	2.303	1.209
1.70V	63.670	48.500	37.180	22.510	13.030	6.144	4.165	2.267	1.197
1.75V	58.300	45.190	35.100	21.760	12.630	5.982	4.079	2.240	1.186
1.80V	52.280	41.590	32.890	21.010	12.210	5.827	3.988	2.216	1.178

Hot Tags: 12v 12ah sla, China 12v 12ah sla manufacturers, suppliers, factory, 12v 100ah agm lead acid gel solar battery, 36v deep cycle battery, agm 8d deep cycle battery, 70Ah GEL Battery, deep cycle gel battery 24v 200ah, 12V1.2Ah Rechargeable Battery

12V 12AH SLA is an Absorbent Glass Mat (AGM) technology with a valve regulated design, that can be used in enclosed and indoor environments without leaking or maintenance, providing a superior performance for thousands of models.

12V 12AH SLA, VdS, 151x98x95 mm (LxWxH), Terminal T1/T2

Warranty: 1 year

Features

1. Non-spillable, non-gassing

2. Sealed and Maintenance-free Operation

3. High durability: Top-Quality materials and careful processing.

4. Lower Self-Discharge Rate: batteries are made of special lead-calcium alloy grid that promises the minimum self-discharging and secures long time storage.

5. High Capacity and Efficiency: High Capacity and Efficiency Low internal resistance for high discharge current

6. Charged Batteries : Accumulators in general are fully-charged on delivery

Application

For cyclical or standby applications such as: alarms, UPS, electric wheel chairs, trailer breakaway systems, exit signs, emergency lighting systems, booster packs, electric gates, toy ride-on vehicles, medical equipment, telecommunications systems, etc.
