12V 9Ah Battery Rechargeable

12v 9ah battery rechargeable is ideal for emergency lights, backup systems, alarm systems, video surveillance, fire prevention systems, home automation systems, automatic doors and gates, backup batteries for ups, in industry, for process continuity, surveillance and video control and in various sectors of electronics. Faston T02 connections. Durable, use your products longer.


PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (20HR)				12V 9Ah
Dimension		Length Width Container Height Total Height		151±1mm （5.94 inches) 65±1mm (2.56 inches) 95±1mm (3.74 inches) 100±1mm (3.94 inches)
Weight				Approx. 2.55 Kg ±3% (5.62lbs)
Standard Terminal				Fasten Tab No.250E(F2)
						Shimastu NP series AGM VRLA Batteries have been developed as general purpose batteries,they're valve-regulated lead acid batteries with high quality. Absorbed Glass Mat(AGM) separators & high purity raw materials, featured by perfectly good performance and reliable standby service life. Features: 1.Non-spillable 2.Sealed and Maintenance-free Operation 3.High Quality and High Reliability 4.Less gassing,low Self-discharge 5.Low internal resistance 6.Long design life up to 6 years in float service at 25℃ (77 0F )
ELECTRICAL SPECIFICATION

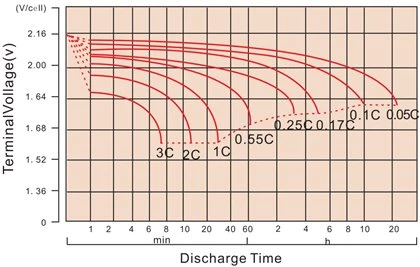

Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			20 hour rate (0.45A) 10 hour rate (0.846A) 5 hour rate (1.53A) 3 hour rate (2.25A) 1 hour rate (4.95A)		9Ah 8.5Ah 7.7Ah 6.8Ah 5Ah
Capacity affected by temperature			40℃ （104 ⁰F） 25℃ （77 ⁰F） 0℃ （32 ⁰F）		102% 100% 85%
Max Discharge Current			90A(5 Sec)
Short Circuit Current			450A
Internal Resistance			Full charged battery (25℃,77 ⁰F) 20mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 2.7A Voltage 14.4~15.0V at 25℃ (77 ⁰F ) Temperature Coefficient –30mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 ⁰F ) Temperature Coefficient –20mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	35.35	24.74	17.71	10.17	5.535	2.548	1.702	0.889	0.470
1.65V	32.87	23.38	16.93	9.76458	5.349	2.475	1.661	0.878	0.462
1.70V	29.66	21.52	15.86	9.333435	5.148	2.399	1.616	0.869	0.455
1.75V	26.57	19.70	14.75	8.92038	4.950	2.325	1.573	0.855	0.450
1.80V	23.33	17.83	13.63	8.52642	4.770	2.250	1.530	0.846	0.445
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	58.59	42.05	30.95	18.47	10.40	4.868	3.282	1.748	0.924
1.65V	55.12	40.50	30.04	17.92	10.11	4.746	3.214	1.728	0.912
1.70V	50.86	37.97	28.55	17.31	9.791	4.622	3.137	1.714	0.897
1.75V	46.58	35.39	26.95	16.70	9.470	4.500	3.065	1.687	0.890
1.80V	41.78	32.59	25.25	16.13	9.180	4.369	2.991	1.672	0.879

Hot Tags: 12v 9ah battery rechargeable, China 12v 9ah battery rechargeable manufacturers, suppliers, factory, gel battery for solar panel, solar power gel battery, 12v 50ah lithium ion battery deep cycle, power agm deep cycle battery, 200 Amp GEL Battery, batterie agm vrla

The 12V 9Ah Battery Rechargeable is essential components of many devices and systems. It is a sealed lead acid battery with a capacity of 9Ah. This battery can be recharged multiple times and is often used in backup power systems, security alarms and emergency lighting. One of its main advantages is its long service life. Batteries can last for years if used and maintained properly. Moreover, the battery is highly reliable and can operate smoothly in various environments and temperatures. Another notable feature of it is its high energy density. Batteries can store large amounts of energy in a relatively small and compact space. This makes this battery ideal for portable devices that require a lot of power.

Shimastu NP9-12, 12v 9ah battery rechargeable

Brand : Shimastu
Voltage : 12v
Capacity : 9ah

Weight : 2.55kg

Dimensions : 151mm Long X 65mm Wide X 95mm High (101mm Over Terminals).

Terminals : F2(T02)

Battery Type: Standby battery

Design life : 6 Year design life at 25℃ (77 0F )when used in standby applications

Features

Using 12V 9Ah Battery Rechargeable is very efficient. It has a low self-discharge rate, which means it retains its charge for a long time without frequent maintenance or recharging. Plus, the battery charges efficiently, meaning it can be fully charged quickly without losing much energy. One of our most notable strengths is its versatility. The battery can be used in a wide range of applications, from simple electronic devices to complex industrial equipment. It can be easily integrated into various systems and its performance can be tailored to specific requirements. Finally, in addition to its versatility, it is also very cost-effective.
