12V 33Ah GEL Battery

Name: China 12V 33Ah GEL Battery Manufacturers Suppliers Factory - Import 12V 33Ah GEL Battery - Shimastu Electronic Technology
Brand: Shimastu
SKU: 180355626

Shimastu Gel series Gel Batteries are manufactured with special separators and silica gel immobilizing the electrolyte inside the battery,it is perfect for frequent cyclic deep discharge or standby applications under harsh environments, and has a long service life.

Send Inquiry

Specifications：


PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (10HR)				12V 33Ah
Dimension		Length Width Container Hight Total Height		196±2mm （7.72 inches) 131±2mm (5.16 inches) 163±2mm (6.42 inches) 168±2mm (6.61 inches)
Weight				Approx. 10.8Kg±3%（23.81lbs）
Standard Terminal				Bolt-and-nut terminal Bolt Type: M6
						Shimastu Gel series Gel Batteries are manufactured with special separators and silica gel immobilizing the electrolyte inside the battery,it is perfect for frequent cyclic deep discharge or standby applications under harsh environments, and has a long service life. Features: 1.Special polar plate design,which ensures a designed floating charge life of 15 years at 25℃ (77 ⁰F ) 2.Equalized current distribution, the active material is not easy to fall off 3.High gas recombination efficiency 4.Good deep discharge resilience performance 5.No delamination phenomena in the electrolyte 6.Manufactured with high-porosity
ELECTRICAL SPECIFICATION
Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			10 hour rate (3.3A) 5 hour rate (5.61A) 3 hour rate (8.25A) 1 hour rate (18.2A)		33Ah 28Ah 24.8Ah 18.2Ah
Capacity affected by temperature			40℃ （104 0F） 25℃ （77 0F） 0℃ （32 0F）		102% 100% 85%
Max Discharge Current			330A(5 Sec)
Short Circuit Current			825A
Internal Resistance			Full charged battery (25℃,77 0F) 10mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 8.2A Voltage 14.1~14.4V at 25℃ (77 0F ) Temperature Coefficient –30mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 0F ) Temperature Coefficient –20mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	119.3	84.32	60.94	36.40	20.50	9.34	6.25	3.50	1.82
1.65V	110.9	79.67	58.27	35.00	19.70	9.05	6.08	3.45	1.80
1.70V	100.1	73.36	54.57	33.50	19.00	8.80	5.92	3.38	1.77
1.75V	89.68	67.14	50.79	31.90	18.20	8.53	5.77	3.34	1.75
1.80V	78.75	60.78	46.89	30.50	17.50	8.25	5.61	3.30	1.73
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	197.8	143.3	106.5	66.13	38.55	17.81	12.07	6.89	3.55
1.65V	186.0	138.0	103.4	64.25	37.24	17.36	11.75	6.76	3.52
1.70V	171.7	129.5	98.3	62.11	36.13	16.94	11.48	6.66	3.49
1.75V	157.2	120.6	92.78	59.75	34.82	16.53	11.23	6.60	3.45
1.80V	141.0	111.1	86.86	57.71	33.65	16.02	10.97	6.49	3.43

Application:

Hot Tags: 12v 33ah gel battery, China 12v 33ah gel battery manufacturers, suppliers, factory, 50 ah gel battery, use of ups in inverter, 250ah deep cycle battery, deep cell 12 volt battery, 12v 200ah gel, emergency exit battery

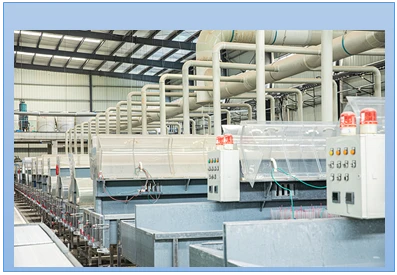

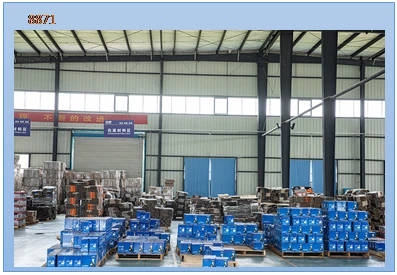

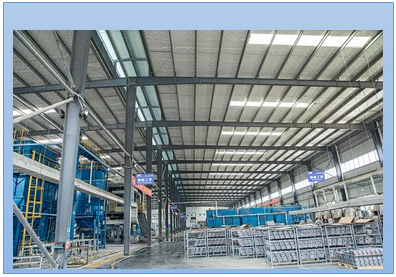

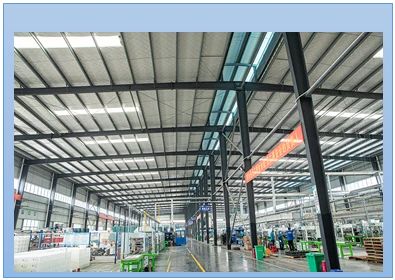

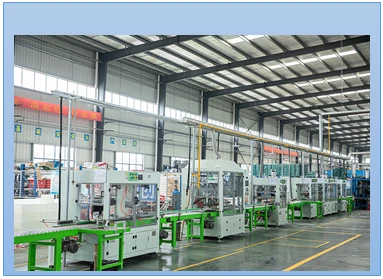

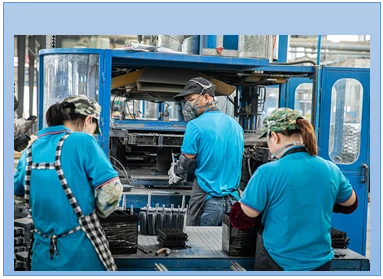

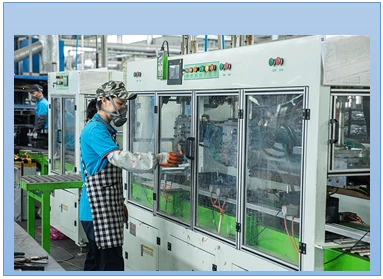

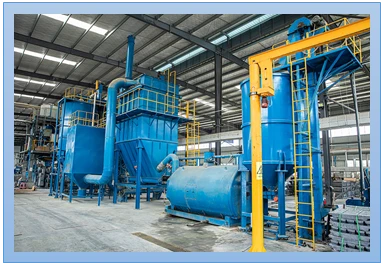

Factory:

This 12V 33Ah GEL Battery is made of special sheet diaphragm and colloidal or foamed silicon dioxide, and the electrolyte is fixed in the battery with silica gel. The silica gel technology it uses can improve its cycle life and performance at cold ambient temperature, effectively increasing the number of deep discharge cycles by 50%. At the same time, the battery adopts tight assembly technology, which is firm and leak-proof, thus prolonging the service life and reducing the need for frequent replacement. This structural design can ensure the uniform response of the whole battery, thus achieving consistent and reliable battery performance and ensuring fast and reliable power supply when you need it.

12V 33AH Gel Battery Features:

This 12V 33Ah GEL Battery adopts innovative electrolyte formula design, which can maintain the uniformity of the whole battery, eliminate the risk of uneven reaction and improve the overall performance. The internal gel is carefully assembled to ensure the tight and reliable structure, which can prevent leakage and improve the overall durability and service life of the battery. With its high rate discharge function, it can provide explosive power when it is most needed, and provide the best performance in emergency and demanding applications. In addition, its automatic exhaust system can automatically release excess gas during operation to prevent pressure accumulation and ensure the safety and stability of battery performance.

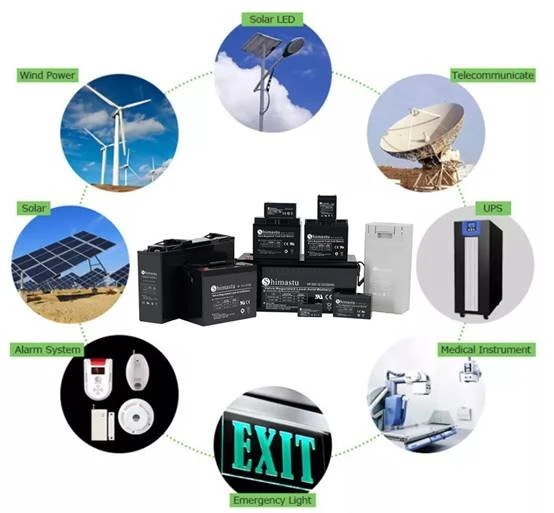

Application:

The battery can significantly improve your power experience and redefine your energy solution, and is widely used in EPS and UPS backup batteries, solar and wind energy storage systems, telecommunications equipment, power plants and transmission systems, signal systems.
