100Ah 12V Gel Cell Deep Cycle Battery

Shimastu Gel series Gel Batteries are manufactured with special separators and silica gel immobilizing the electrolyte inside the battery,it is perfect for frequent cyclic deep discharge or standby applications under harsh environments, and has a long service life.


PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (10HR)				12V 100Ah
Dimension		Length Width Container Height Total Height		331±2mm （13.03 inches） 172±2mm (6.77 inches) 216±2mm (8.50 inches) 222±2mm (8.74 inches)
Weight				Approx. 28.5 Kg ±3% (62.83lbs)
Standard Terminal				B3(Bolt-and-nut terminal) Bolt Type: M6
						Shimastu Gel series Gel Batteries are manufactured with special separators and silica gel immobilizing the electrolyte inside the battery,it is perfect for frequent cyclic deep discharge or standby applications under harsh environments, and has a long service life. Features: 1.Special polar plate design,which ensures a designed floating charge life of 15 years at 25℃ (77 ⁰F ) 2.Equalized current distribution, the active material is not easy to fall off 3.High gas recombination efficiency 4.Good deep discharge resilience performance 5.No delamination phenomena in the electrolyte 6.Manufactured with high-porosity
ELECTRICAL SPECIFICATION
Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			10 hour rate (10A) 5 hour rate (17A) 3 hour rate (25A) 1hour rate (60A)		100Ah 85Ah 75Ah 55Ah
Capacity affected by temperature			40℃ （104 0F） 25℃ （77 0F） 0℃ （32 0F）		102% 100% 85%
Max Discharge Current			1000A(5 Sec)
Short Circuit Current			2150A
Internal Resistance			Full charged battery (25℃,77 0F) 6.8mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 25A Voltage 14.1~14.4V at 25℃ (77 0F ) Temperature Coefficient –30mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 0F ) Temperature Coefficient –20mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	10MIN	15MIN	30MIN	1HR	3HR	5HR	8HR	10HR	20HR
1.60V	240.4	181.0	108.1	62.0	28.3	18.9	12.7	10.6	5.51
1.65V	218.9	173.0	103.9	59.7	27.4	18.4	12.5	10.4	5.44
1.70V	198.9	162.1	99.5	57.4	26.7	17.9	12.4	10.3	5.36
1.75V	181.7	150.8	94.7	55.0	25.8	17.5	12.2	10.1	5.30
1.80V	165.0	139.2	90.6	53.0	25.0	17.0	12.0	10.0	5.25
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	10MIN	15MIN	30MIN	1HR	3HR	5HR	8HR	10HR	20HR
1.60V	397.7	316.5	196.4	116.6	54.0	36.6	25.0	20.9	10.8
1.65V	379.4	307.0	190.8	112.8	52.6	35.6	24.6	20.6	10.7
1.70V	351.0	291.8	184.4	109.1	51.3	34.8	24.2	20.3	10.6
1.75V	326.3	275.5	177.3	105.2	50.1	34.0	23.9	20.0	10.5
1.80V	301.5	258.0	171.4	102.0	48.5	33.2	23.7	19.7	10.4

Application:

Hot Tags: 100ah 12v gel cell deep cycle battery, China 100ah 12v gel cell deep cycle battery manufacturers, suppliers, factory, gel cell batteries for golf carts, energy power deep cycle battery, small solar battery, mg4b bs battery, 10 volt battery, lithium gel battery

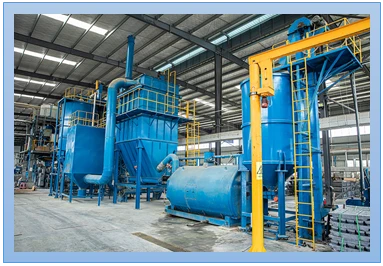

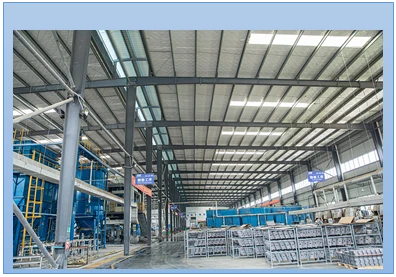

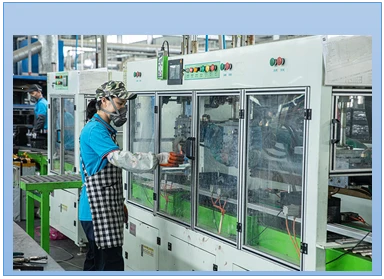

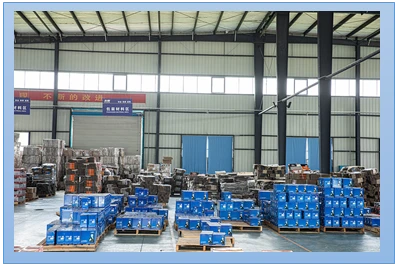

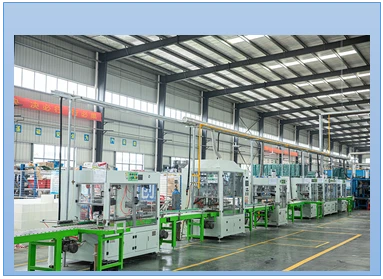

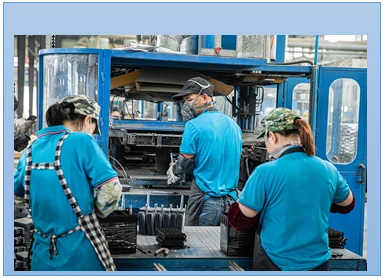

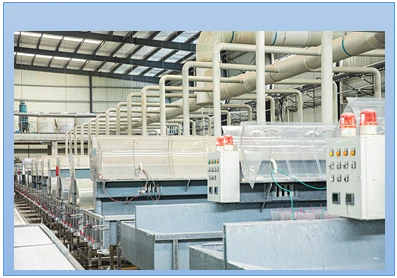

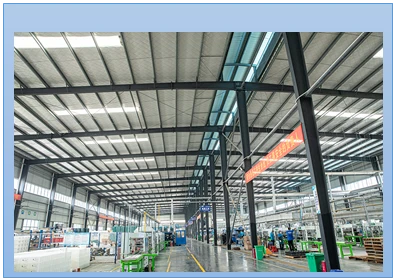

Our Factory:

This 100Ah 12V Gel Cell Deep Cycle Battery adopts advanced gel technology and is internally equipped with lead-calcium-tin alloy positive and negative plates, aiming at providing consistent and lasting performance. With a large capacity of 100Ah, it can ensure continuous and reliable energy supply for your devices and equipment, reduce downtime and maximize productivity. At the same time, its deep circulation technology enables it to deal with repeated deep discharges and ensure the uniformity of each reaction, so that it can operate at low internal pressure with superior energy density.

Features:

This 100Ah 12V Gel Cell Deep Cycle Battery is designed with low self-discharge technology, which can reserve power for a long time and provide stable power transmission when needed, so that you can enjoy the convenience of reliable power supply. Secondly, its quality meets strict safety and environmental standards, and has passed the comprehensive test and certification of CE and ROHS. Its sturdy structure ensures that it can withstand harsh environmental conditions and provide consistent performance in various applications. It can provide a stable and safe electricity consumption experience in countless charging cycles and reduce the need for frequent replacement.

Our service

Our team consists of a large number of professional R&D engineers, with a bachelor degree or above per capita. We have strict material cost control and inventory control system, and can provide you with battery products with reasonable price and strict quality. And ensure that they are suitable for independent test rooms of most standard tests, and are tested before assembly to ensure low failure rate. In addition, we upgrade our products every 1.5~2 years on average to provide our customers with better products.
