				OPzV1500 Tubular GEL Battery
PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (10HR)				2V 1500Ah
Dimension		Length Width Container Height Total Height		275±2mm (10.83 inches) 210±2mm (8.27 inches) 795±2mm (31.30inches) 827±2mm (32.56 inches)
Weight				Approx. 113.5 Kg ±3% (250.15lbs)
Standard Terminal				Bolt-and-nuts terminal Bolt Type: M8

ELECTRICAL SPECIFICATION
Characteristics						Main Advantages
Capacity			10 hour rate (150.8A t0 1.80v/cell) 5 hour rate (267.0A t0 1.70v/cell) 3 hour rate (390.0A t0 1.70v/cell) 1hour rate (900.0A t0 1.60v/cell)		1508Ah 1335Ah 1170Ah 900Ah
Operating Temp. Range			Discharge : -40℃~55℃ Charge : -15℃~50℃ Storage : -15℃~40℃
Max. Discharge Current			7500A(5sec)
Short Circuit Current			12500A

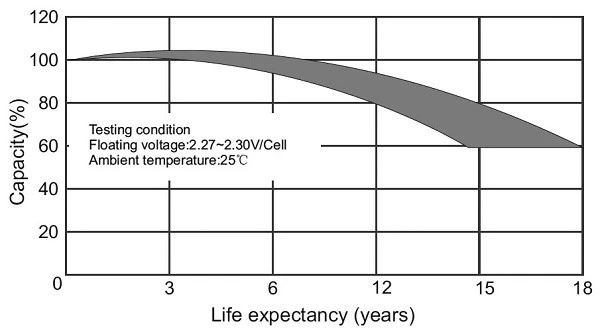

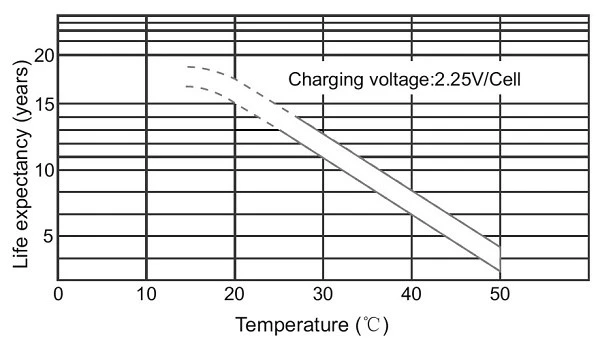

Designed life			20 years ( floating ) at 25℃(77 ⁰F)
Internal Resistance			Full charged battery (25℃,77 ⁰F) 0.35mΩ

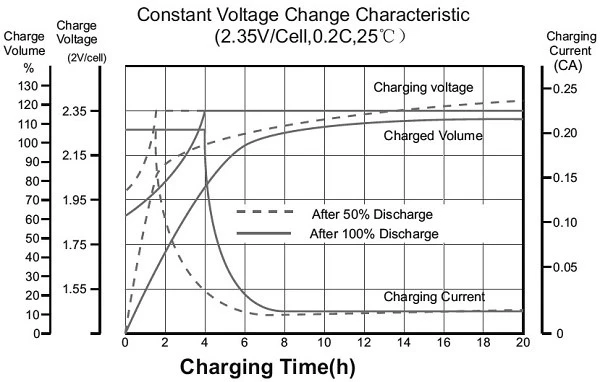

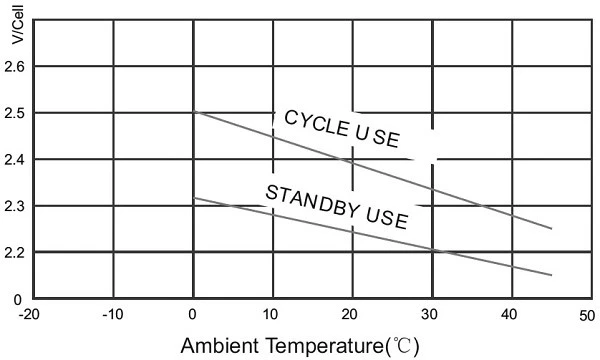

Constant Voltage Charge	Cycle		Initial Charging Current less than :≤375.0A Voltage: 2.35~2.40V at 25℃ (77 ⁰F ) Temperature Coefficient –5mV/℃
	Standby		No limit on Initial Charging Current Voltage: 2.25V at 25℃ (77 ⁰F ) Temperature Coefficient –3mV/℃

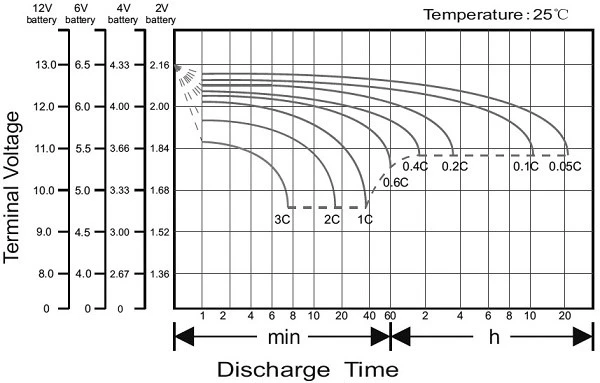

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	15min	30min	1h	2h	3h	4h	5h	8h	10h
1.60V	1575	1238	900	563	405	323	273.8	194.3	159.0
1.65V	1485	1178	848	548	398	315	270.8	192.8	158.3
1.70V	1403	1125	833	533	390	314	267.0	190.5	157.5
1.75V	1313	1065	780	518	383	308	262.5	186.8	155.3
1.80V	1223	998	743	503	375	300	256.5	182.3	150.8
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	15min	30min	1h	2h	3h	4h	5h	8h	10h
1.60V	2715	2175	1643	1050	765	611	519.8	371.3	304.5
1.65V	2595	2063	1545	1028	754	599	515.3	369.0	303.8
1.70V	2453	1980	1523	1005	743	598	510.0	366.0	303.0
1.75V	2318	1898	1455	983	731	589	503.3	360.0	300.0
1.80V	2190	1823	1395	960	720	577	493.5	351.8	291.8

OPzV1500 Tubular GEL Battery

Hot Tags: opzv tubular gel battery 2v1500ah, China opzv tubular gel battery 2v1500ah manufacturers, suppliers, factory, deep cycle battery 115ah, agm leisure battery 130ah, 12v 130ah deep cycle battery, 12v 120ah deep cycle battery, 35ah deep cycle battery, 130 amp hour deep cycle battery

Description
Shimastu OPzV Tubular GEL Battery 2V1500AH is longest Gel Solid-State battery. By combining the newly developed tubular positive plates with fumed gelled electrolyte, the range offers 20 years design life and super high deep cycling capabilities.
Shimastu OPzV Tubular GEL Battery 2V1500AH is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Features and Advantages
1. Over 20 years design life at floating condition @ 25°C.
2. Wider working temperature at -40ºC~ 60ºC; Best choice for working in hot/cold temperatures places.
3. Lead Calcium die cast grid with improved corrosion resistance capability.

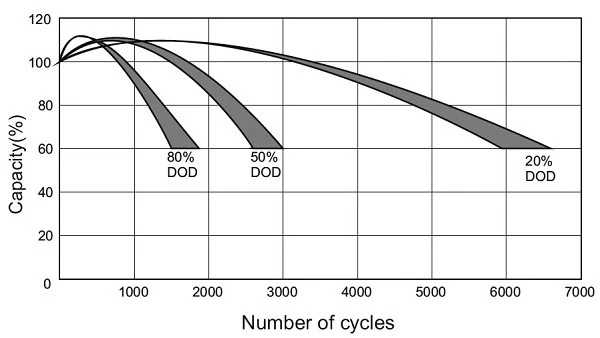

4. Tubular positive plate with prolonged cycle life.

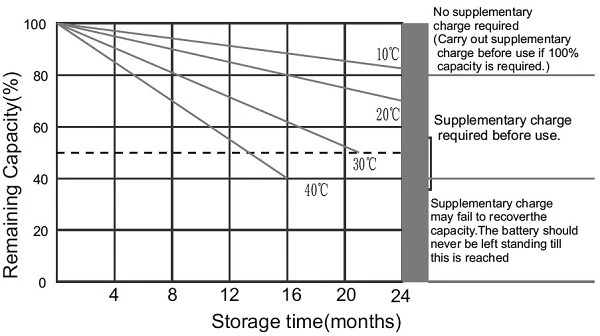

5. Low self-discharge rate and long shelf life.
6. Excellent deep discharge recovery capability.
7. Fumed Silica gel electrolyte.

Application
- Telecom
- Electric utilities
- Security systems
- Photovoltaic systems
- Control equipment
- Medical equipment
- Railroad utilities
- Renewable energy system and so on.
