Electric Scooter Lead Acid Battery

Shimastu electric scooter lead acid battery are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and thus immobilized.Should the battery be accidentally overcharged producing bydrogen and oxygen, Special one-way valves allow the gases to escape thus avoiding excessive pressure build-up.


PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (10HR)				12V 24Ah
Dimension		Length Width Container Height Total Height		175±2mm （6.89 inches) 165±2mm (6.50 inches) 126±2mm (4.96 inches) 126±2mm (4.96 inches)
Weight				Approx. 8 Kg ±3% ( 17.63lbs)
Standard Terminal				Bolt-and-nut terminal Bolt Type: M5
						Shimastu NP series AGM VRLA Batteries have been developed as general purpose batteries,they're valve-regulated lead acid batteries with high quality. Absorbed Glass Mat(AGM) separators & high purity raw materials, featured by perfectly good performance and reliable standby service life. Features: 1.Non-spillable 2.Sealed and Maintenance-free Operation 3.High Quality and High Reliability 4.Less gassing,low Self-discharge 5.Low internal resistance 6.Long design life up to 8 years in float service at 25℃ (77 0F )
ELECTRICAL SPECIFICATION

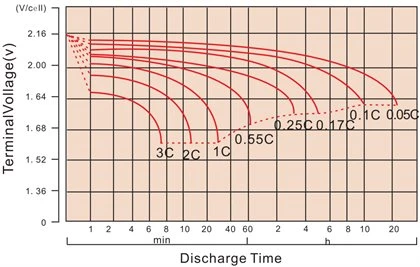

Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			10 hour rate (2.4A) 5 hour rate (4.08A) 3 hour rate (6A) 1 hour rate (13.16A)		24Ah 20.4Ah 18Ah 13.2Ah
Capacity affected by temperature			40℃ （104 ⁰F） 25℃ （77 ⁰F） 0℃ （32 ⁰F）		102% 100% 85%
Max Discharge Current			240A(5 Sec)
Short Circuit Current			850A
Internal Resistance			Full charged battery (25℃,77 ⁰F) 10mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 6A Voltage 14.1~14.4V at 25℃ (77 ⁰F ) Temperature Coefficient –30mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 ⁰F ) Temperature Coefficient –20mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	86.77	61.32	44.32	26.25	14.69	6.77	4.53	2.54	1.32
1.65V	80.68	57.94	42.38	25.24	14.18	6.56	4.41	2.50	1.30
1.70V	72.80	53.35	39.69	24.15	13.67	6.39	4.30	2.46	1.28
1.75V	65.23	48.83	36.94	23.05	13.16	6.19	4.19	2.43	1.27
1.80V	57.27	44.20	34.10	22.04	12.73	6.00	4.08	2.40	1.26
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	5MIN	10MIN	15MIN	30MIN	1HR	3HR	5HR	10HR	20HR
1.60V	143.8	104.2	77.48	47.70	27.62	12.91	8.75	5.00	2.58
1.65V	135.3	100.4	75.18	46.33	26.81	12.58	8.52	4.91	2.55
1.70V	124.9	94.15	71.48	44.76	26.00	12.29	8.34	4.84	2.52
1.75V	114.3	87.70	67.48	43.18	25.19	11.99	8.16	4.80	2.51
1.80V	102.5	80.77	63.17	41.69	24.47	11.65	7.98	4.72	2.50

Hot Tags: electric scooter lead acid battery, China electric scooter lead acid battery manufacturers, suppliers, factory, 6v 200ah agm deep cycle battery, 12v 300ah deep cycle battery, slimline agm deep cycle battery, dual battery solar controller, deep cycle gel battery 12v, backup battery for home alarm system

The Electric Scooter Lead Acid Battery is known for their affordability. Lead-acid batteries are relatively inexpensive compared to other types of batteries on the market, making them a popular choice for electric scooter manufacturers. This affordability factor not only helps manufacturers reduce production costs, but it also makes electric scooters more accessible to the masses. Another outstanding feature of it is its durability. These batteries have a long lifespan and can withstand multiple charge cycles, making them a reliable power source for electric scooters. In addition, it is highly resistant to vibration and shock, making it suitable for all types of terrain.

Features

The Electric Scooter Lead Acid Battery are known for their high performance at low temperatures. Unlike some other battery types that degrade significantly in cold weather conditions, it provides a steady power output. This feature is especially beneficial for e-scooter riders in cold climates, as it ensures a smooth, uninterrupted ride year-round. Additionally, our products are known for their ease of maintenance. These batteries require very little attention and maintenance, making them a hassle-free choice for electric scooter owners.

Application

Electric Scooter Lead Acid Battery tend to be heavier compared to the product, affecting the overall weight and maneuverability of the electric scooter. However, manufacturers are continually working to reduce the weight of lead-acid batteries without compromising their performance, aiming to overcome this limitation. All in all, electric scooters use its features to make it a cost-effective, durable and reliable choice for riders.
