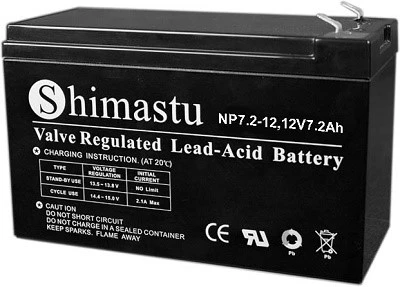

AGM VRLA Battery 12V7.2AH

PHYSICAL SPECIFICATION

Nominal Voltage

Nominal Capacity (20HR)

12V

7.2Ah

Dimension

Length

Width

Container Height

Total Height

151±1mm (5.94 inches)

65±1mm (2.56 inches)

95±1mm (3.74 inches)

101±1mm (3.98 inches)

Weight

Approx. 2.05 Kg ±3% (4.52 lbs)

Standard Terminal

Fasten Tab No.187E(F1)

Shimastu NP series AGM VRLA Batteries have

been developed as general purpose batteries,they're

valve-regulated lead acid batteries with high quality

Absorbed Glass Mat(AGM) separators & high purity raw materials, featured by perfectly good performance and

reliable standby service life.

Features:
1.Non-spillable
2.Sealed and Maintenance-free Operation
3.High Quality and High Reliability
4.Less gassing,low Self-discharge
5.Low internal resistance
6.Long design life up to 6 years in float service at 25℃

(77 ⁰F )­

ELECTRICAL SPECIFICATION

Characteristics

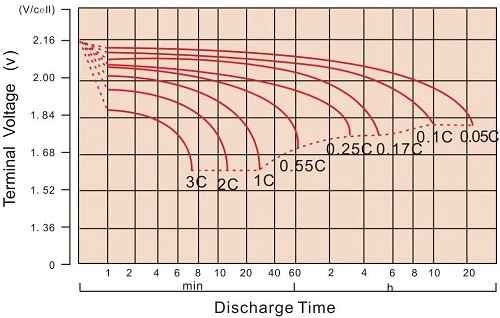

Discharge curves @ 25℃ (77 °F)

Capacity

20 hour rate (0.36A)

10 hour rate (0.676A)

5 hour rate (1.224A)

3 hour rate (1.8A)

1 hour rate (3.96A)

7.2Ah

6.8Ah

6.1 Ah

5.4 Ah

4.0Ah

Capacity affected

by temperature

40℃ （104 ⁰F）

25℃ （77 ⁰F）

0℃ （32 ⁰F）

102%

100%

85%

Max Discharge Current

72A(5 Sec)

Short Circuit Current

340A

Internal Resistance

Full charged battery (25℃,77 ⁰F) 25mΩ

Constant Voltage

Charge

Cycle

Initial Charging Current less than 2.16A

Voltage 14.4~15.0V at 25℃ (77 ⁰F )

Temperature Coefficient –30mV/℃

Standby

No limit on Initial Charging Current

Voltage 13.5~13.8V at 25℃ (77 ⁰F )

Temperature Coefficient –20mV/℃
