PHYSICAL SPECIFICATION
Nominal Voltage Nominal Capacity (10HR)				12V 70Ah
Dimension		Length Width Container Height Total Height		259±2mm （10.20 inches） 168±2mm (6.61 inches) 208±2mm (8.23 inches) 213±2mm (8.94 inches)
Weight				Approx. 21.7 Kg ±3%(47.8lbs)
Standard Terminal				Bolt-and-nut terminal Bolt Type: M6
						Shimastu Gel series Gel Batteries are manufactured with special separators and silica gel immobilizing the electrolyte inside the battery,it is perfect for frequent cyclic deep discharge or standby applications under harsh environments, and has a long service life. Features: 1.Special polar plate design,which ensures a designed floating charge life of 15 years at 25℃ (77 ⁰F ) 2.Equalized current distribution, the active material is not easy to fall off 3.High gas recombination efficiency 4.Good deep discharge resilience performance 5.No delamination phenomena in the electrolyte 6.Manufactured with high-porosity
ELECTRICAL SPECIFICATION

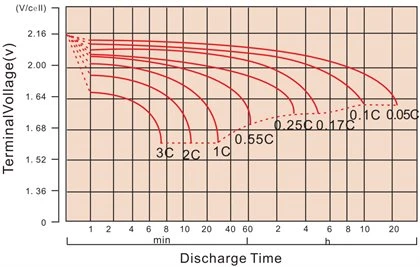

Characteristics						Discharge curves @ 25℃ (77 °F)
Capacity			10 hour rate (7.0A) 5 hour rate (11.9A) 3 hour rate (17.5A) 1 hour rate (38.5A)		70Ah 59.5Ah 52.5Ah 38.5Ah
Capacity affected by temperature			40℃ （104 ⁰F） 25℃ （77 ⁰F） 0℃ （32 ⁰F）		102% 100% 85%
Max Discharge Current			700A(5 Sec)
Short Circuit Current			1480A
Internal Resistance			Full charged battery (25℃,77 0F) 6mΩ
Constant Voltage Charge	Cycle		Initial Charging Current less than 17.5A Voltage 14.1~14.4V at 25℃ (77 ⁰F ) Temperature Coefficient –18mV/℃
	Standby		No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 ⁰F ) Temperature Coefficient –18mV/℃

CONSTANT CURRENT DISCHARGE RATING A@25℃
F.V/TIME	10MIN	15MIN	30MIN	1HR	3HR	5HR	8HR	10HR	20HR
1.60V	168.3	126.7	75.7	43.4	19.8	13.3	8.90	7.41	3.86
1.65V	159.0	121.1	72.8	41.8	19.2	12.9	8.78	7.31	3.81
1.70V	146.4	113.4	69.6	40.2	18.7	12.6	8.65	7.19	3.75
1.75V	134.0	105.6	66.3	38.5	18.1	12.2	8.53	7.09	3.71
1.80V	121.3	97.5	63.4	37.1	17.5	11.9	8.39	7.00	3.67
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃
F.V/TIME	10MIN	15MIN	30MIN	1HR	3HR	5HR	8HR	10HR	20HR
1.60V	286.0	221.5	137.5	81.6	37.8	25.6	17.5	14.6	7.59
1.65V	275.5	214.9	133.6	78.9	36.8	24.9	17.2	14.4	7.49
1.70V	258.4	204.3	129.1	76.4	35.9	24.4	17.0	14.2	7.40
1.75V	240.6	192.9	124.2	73.7	35.1	23.8	16.8	14.0	7.32
1.80V	221.6	180.6	120.0	71.4	34.0	23.3	16.6	13.8	7.28

Hot Tags: 70ah gel battery, China 70ah gel battery manufacturers, suppliers, factory, 12v deep cycle marine battery, lfp cells, gel 200ah, lithium solar batteries, 80ah AGM deep cycle battery, 31 deep cycle marine battery

This 70Ah GEL Battery is a valve-regulated lead-acid battery with the feature of maintenance-free. This is because its electrolyte is a gel-like substance, and the internal gas is allowed to recombine into water by opening the valve in one direction, so there is no need to check whether it is filled with distilled water or monitor the water level. The battery adopts tight assembly technology to ensure leak-proof and safe design, which can improve safety and prolong the service life of the battery during long-term use. In addition, it can be safely installed in a place with limited ventilation, because its gas/smoke output is very low, and you can even install it at home.

Features:

This 70Ah GEL Battery is specially designed for deep cycle discharge, which is very suitable for applications that need frequent and long-term discharge and charging, such as solar energy storage, marine use and electric vehicles. Its maintenance-free structure allows you to use it easily without regular inspection and water addition. At the same time, it has strong heat dissipation ability, is compatible with sensitive electronic equipment, and will not cause interference or damage. And because it can provide reliable performance in countless charging cycles, it helps to reduce maintenance times and replacement costs to help you reduce costs.

Application:

1.Solar power system & Wind system

2.Deep discharge UPS

3.Outdoor energy storage systems

4.Communication systems

5.Electric power systems

6.Electric vehicles
