PHYSICAL SPECIFICATION |
||||||
|
Nominal Voltage Nominal Capacity (10HR) |
12V 100Ah |
|
||||
|
Dimension |
Length Width Container Height Total Height |
331±2mm （13.03 inches） 172±2mm (6.77 inches) 216±2mm (8.50 inches) 222±2mm (8.74 inches) |
||||
|
Weight |
Approx. 31 Kg ±3% ( 68.32lbs) |
|||||
|
Standard Terminal |
B3(Bolt-and-nut terminal) Bolt Type: M6 |
|||||
|
|

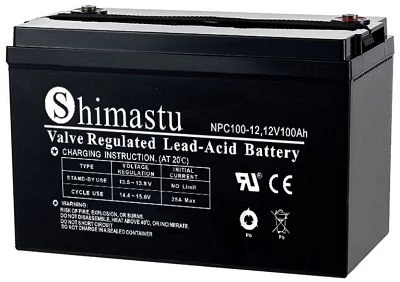

Shimastu NPC series Deep Cycle Batteries are deep-cycle battery designed to be regularly deeply discharged using most of its capacity,its the most common battery used for solar off-grid and hybrid energy storage, as well as many other applications. |
|||||
|
ELECTRICAL SPECIFICATION |
||||||
|
Characteristics |

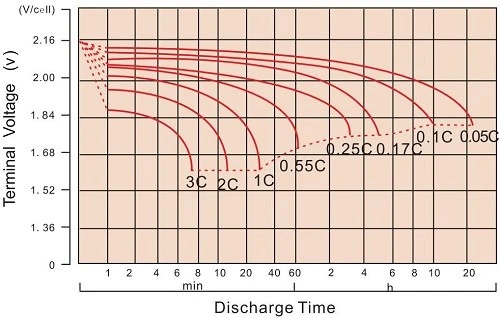

Discharge curves @ 25℃ (77 °F) |
|||||
|
Capacity |
10 hour rate (10A) 5 hour rate (17A) 3 hour rate (25A) 1 hour rate (55A) |
100Ah 85Ah 75Ah 55Ah |
|
|||
|
Capacity affected by temperature |
40℃ (104 0F) 25℃ (77 0F) 0℃ (32 0F) |
102% 100% 85% |
||||
|
Max Discharge Current |
1000A(5 Sec) |
|||||
|
Short Circuit Current |
2150A |
|||||
|
Internal Resistance |
Full charged battery (25℃,77 0F) 6.8mΩ |
|||||
|
Designed life |
≥700 Cycles @ 50% D.O.D(25℃) |
|||||
|
Constant Voltage Charge |
Cycle |
Initial Charging Current less than 25A Voltage 14.1~14.4V at 25℃ (77 0F ) Temperature Coefficient –30mV/℃ |
||||
|
Standby |
No limit on Initial Charging Current Voltage 13.5~13.8V at 25℃ (77 0F ) Temperature Coefficient –20mV/℃ |
|||||
|
CONSTANT CURRENT DISCHARGE RATING A@25℃ |
|||||||||
|
F.V/TIME |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
240.4 |
181.0 |
108.1 |
62.0 |
28.3 |
18.9 |
12.7 |
10.6 |
5.51 |
|
1.65V |
218.9 |
173.0 |
103.9 |
59.7 |
27.4 |
18.4 |
12.5 |
10.4 |
5.44 |
|
1.70V |
198.9 |
162.1 |
99.5 |
57.4 |
26.7 |
17.9 |
12.4 |
10.3 |
5.36 |
|
1.75V |
181.7 |
150.8 |
94.7 |
55.0 |
25.8 |
17.5 |
12.2 |
10.1 |
5.30 |
|
1.80V |
165.0 |
139.2 |
90.6 |
53.0 |
25.0 |
17.0 |
12.0 |
10.0 |
5.25 |
|
CONSTANT POWER DISCHARGE RATING WATT PER CELL@25℃ |
|||||||||
|
F.V/TIME |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
397.7 |
316.5 |
196.4 |
116.6 |
54.0 |
36.6 |
25.0 |
20.9 |
10.8 |
|
1.65V |
379.4 |
307.0 |
190.8 |
112.8 |
52.6 |
35.6 |
24.6 |
20.6 |
10.7 |
|
1.70V |
351.0 |
291.8 |
184.4 |
109.1 |
51.3 |
34.8 |
24.2 |
20.3 |
10.6 |
|
1.75V |
326.3 |
275.5 |
177.3 |
105.2 |
50.1 |
34.0 |
23.9 |
20.0 |
10.5 |
|
1.80V |
301.5 |
258.0 |
171.4 |
102.0 |
48.5 |
33.2 |
23.7 |
19.7 |
10.4 |
